    O.S. SPEED T1204 (1CS00)

    O.S. SPEED T1204 Combo Set (1CS01)
    TT01 EFRA2672(T-1070SC L52)+MT03

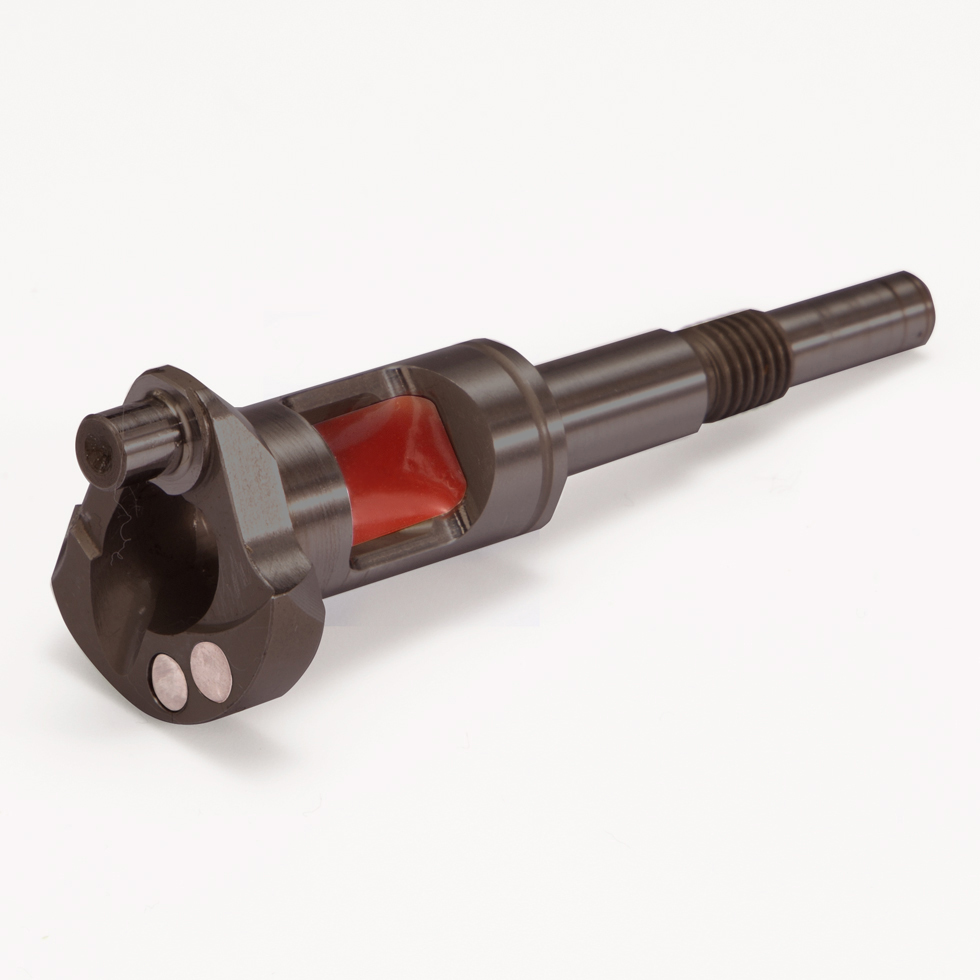

O.S. SPEED T1204 is the successor of T1203 which is the World Champion engine in 2018. T1204 has more toque in low-middle range with better performance. Two tungsten weights are embedded in the counterweight of newly designed crankshaft, which helps powerful performance in middle range. The cooling head with wider fin pitch improves cooling efficiency.

Specifications---------------------------
Displacement: 2.1cc/0.128cu.in.
Bore: 13.67mm/0.538in.
Stroke: 14.30mm/0.563in.
Output 1.75ps/1.73hp/35,000r.p.m.
Practical rpm range: 5,000〜45,000r.p.m.
Weight:233g/8.22oz.
Standard accessories:Glow plug RP6 /Dust cap set/Exhaust seal ring

features

  • The new crankshaft contributes better performance in middle range.

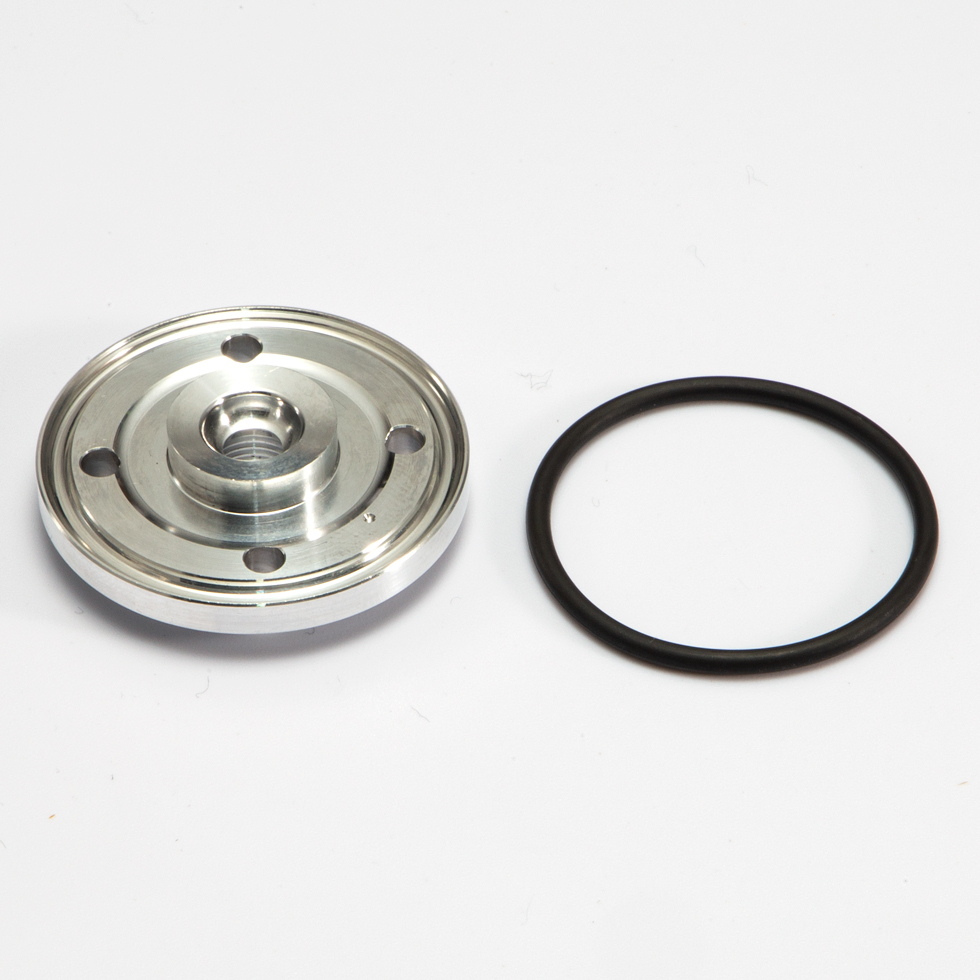

  • The inner head o-ring prevents dust from coming into the combustion chamber.

  • The cooling head with wider fin pitch improves cooling efficiency.

Photo gallery
